Using the shearplate - splice steel connection type, you can connect a secondary beam to the main beam.
Allowable elements:
- Main beam
Straight profiles: all sections
- Secondary beam
Straight profiles: all sections
Location of elements:
Axes of connected bars must be parallel.

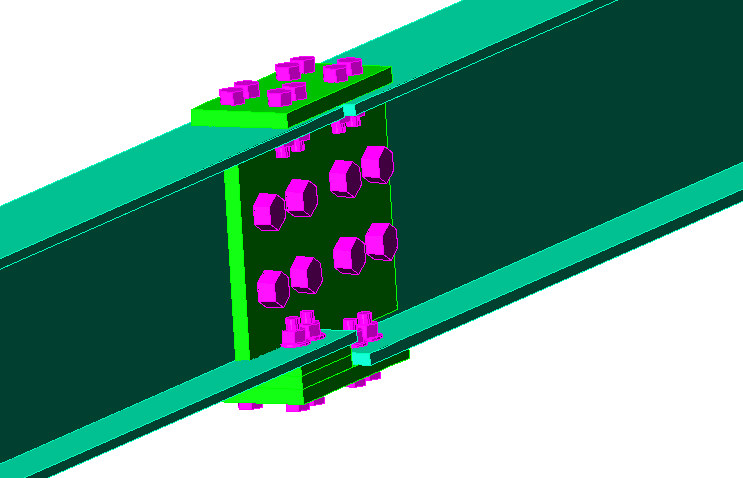

An example of the connection is displayed below.
