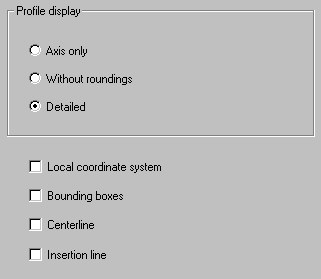

After you click Profiles from the left pane of the Steel tab, the parameter options are as shown.
Define display parameters for bar profiles:
- For Profile display:
- Axis only - if this is selected, a profile (bar) will be displayed as a line connecting the beginning point and end point of the profile.
- Without roundings - if this is selected, a simplified view of a profile (without roundings) will be displayed.
- Detailed - if this is selected, a profile (bar) will be displayed with all the details.
- Local coordinate system - if this is selected, the local coordinate system will be displayed for all profiles defined in the project.
- Bounding boxes - if this is selected, bounding boxes will be displayed for all profiles defined in the project.
- Centerline - if this is selected, the bar axis will be displayed for all profiles defined in the project (regardless of which option has been chosen in the Profile display field).
- Insertion line - if this is selected, the line of profile insertion will be displayed for all profiles defined in the project. This may be applied to present profile offsets.
