Beam/Column web with channel seat profile

Using the beam/column web with channel seat profile steel connection type, you can connect the column web to a beam by means of a seat profile (a channel).

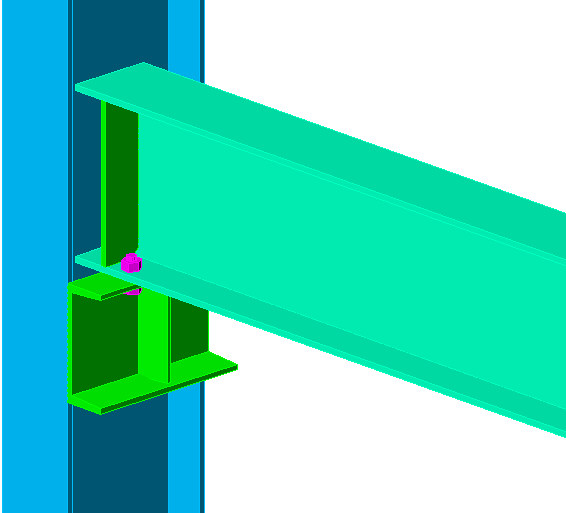

An example of the connection is displayed below.
