Use this option to fit 2 profiles to each other using a bisector.

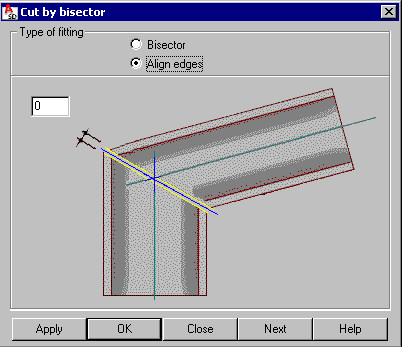

To begin the fitting operation, open the Cut by bisector dialog from:
- Menu: Steel > Machining > Cut by bisector
- Ribbon: ASD - Model > Machining > Cut by bisector
- Toolbar: Machining > Cut by bisector
- Command line: RBCS_CUTBISEC.
The cutting operation may be performed as cutting with:
- A bisector, the result of which is a cut as shown in the drawing below.
- Alignment of profile edges (the cutting line goes from point A to point B), the result of which is a cut as shown in the drawing below.
For the both types of cutting, it is possible to define a distance between the cut profiles.
When you click Apply, parameters in selected objects are modified. Clicking OK performs the defined operation of cutting the profiles based on the adopted parameters and closes the dialog.
After you click Close, the defined operation is performed without saving the changes made recently. Cutting of successive profiles starts when you click Next.
