To define a new profile family:
- Click the Family Manager option
- In the Family Manager dialog, click New. The software creates a new family with the properties of the most recently selected (highlighted) family.
- Under Details:
- For Name, enter Bracings.
- For Layer, select RbCS_Profile.
- For Part type, select Profile.
- For Color, select ByLayer.
- For Default single part position prefix, enter br.
- For Default main part position prefix, enter Br.

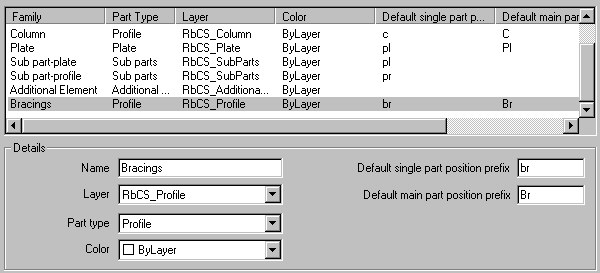

The new profile family has been added to the list (see the drawing below).
- Click OK.
In the Family Manager dialog, you can also edit parameters of a selected family.
