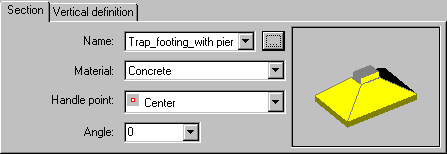

On the Section tab of the Spread footing: definition dialog, you can define shape parameters of a spread footing.
Specify parameters for each type of spread footing cross-section:
- Name - click the Browse (...) button and make a selection in the Spread footing list dialog
- Material
- Handle point of the spread footing while defining it on the screen
- Rectangular section
- Round section
Angle of rotation of the spread footing cross-section - select an available value (0, 45, 90, 135, or 180) or enter a different value. The definition of this angle refers to the current (local) system of coordinates.
