Using this dialog, you can determine parameters of graphic presentation of views and cross-sections of a formwork of elements (or steel profiles).
To display the Graphic presentation (or Graphic presentation of steel profiles) dialog:
- On the Description of reinforcement shape dialog, for Reinforcement description, select Graphic presentation (or Steel profile - presentation)
- Click New or Modify.
For Style name, enter a name for the component style, and click Save (this is only available when creating a style, not when modifying an existing style).
Use the tabs on the Graphic presentation (or Graphic presentation of steel profiles) dialog to define the following parameters:

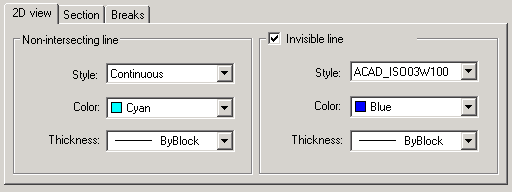

- 2D view - use the options on this tab to define style, color, and thickness parameters of a non-intersecting line and an invisible line in 2D

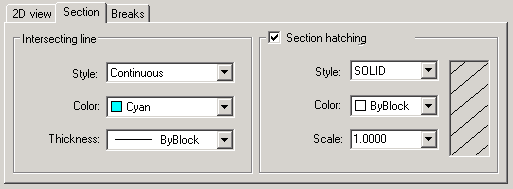

- Section - use the options on this tab to define parameters in a section view
o Intersecting line - style, color, and thickness
o Section hatching - style, color, and scale

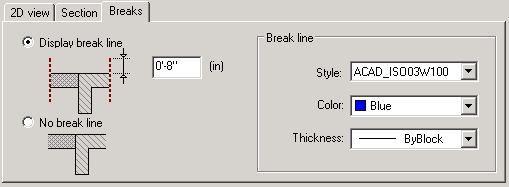

- Breaks - use the options on this tab to specify if a break line is displayed, and to define style, color and thickness parameters of a break line.
