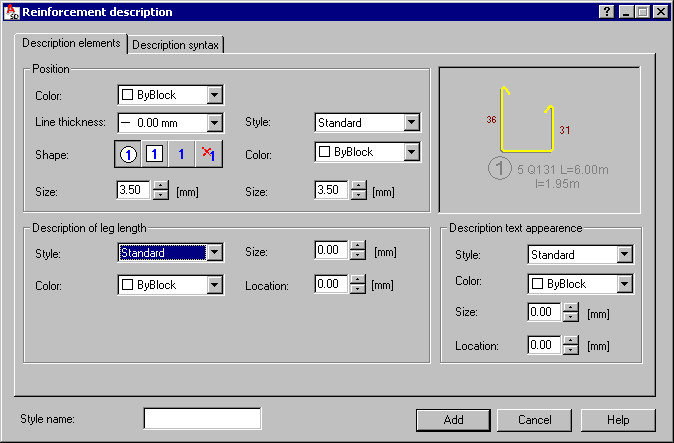

On the Description elements tab of the Reinforcement description (wire fabric symbol) dialog, you can define parameters such as colors, line thickness, font size, and label shape for a description.
The options included in the Position field refer to a label and the number that the label contains (see the drawing below).
Under Position, specify label parameters:
- Color
- Line thickness
- Label shape
- Label size.
Specify position number parameters:
- Font style
- Font color
- Font size.
Define parameters for Description of leg length:
- Style
- Color
- Size
- Position of a text with respect to the described wire fabric.
The options under Description text appearance define a description placed directly behind a position:
- Style
- Color
- Size
- Position with respect to a label (horizontal distance).
