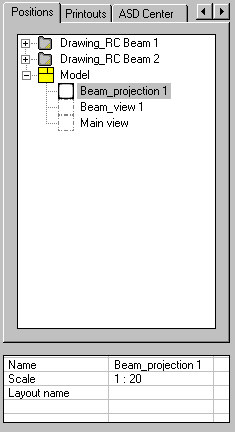

The Positions tab presents a list of defined views containing name, scale and name of the printout layout including a given view as shown below.
The icon of a document included on the list is presented as follows:
- the document has been read from Autodesk Robot Structural Analysis.
in yellow - the document is active on the edition layout; moreover, there may exist views for a document, presented as:
active view
inactive view.
If the icon of a view provided on the list is shown in bold, it means that it is an active view.
Access the context menu by right-clicking the Positions tab. The menu contains several options which allow performing operations on selected positions:
- Change name - choosing this command enables changing the name of a highlighted view (the name is entered to the command line)
- Activate - choosing this command activates the selected drawing
- Add to current printout - selecting this command adds a view with selected drawing to the current printout
- Add to current printout as block - selecting this command adds a view with selected drawing in form of block to the current printout
Arranging printouts by means of the blocks enables to create printout layouts with a large number of elements. It is possible to modify the elements presented in a block on a model only and the modification will be updated after moving on to the drawing area. It is not possible to modify elements by the means of the block edition.
- Show view - this option allows for presentation of the selected view
- Delete view - choosing this command enables deletion of the created view.
