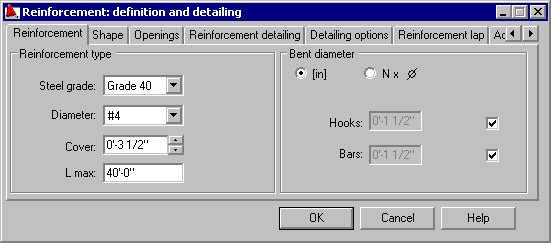

Access this dialog by selecting the Reinforcement tab from the Reinforcement: definition and detailing dialog. The following dialog displays:
Specify the following parameters:
- In the Reinforcement type field:
- steel grade
- reinforcement diameter
- reinforcement cover
- maximum length of reinforcing bars
- In the Bent diameter field - bent diameters for bars and hooks; specify the diameter as a value (in units) or as the multiple of a bar diameter.
To ensure that all generated bars or hooks in the distribution have the same bent diameters and equal values are entered in the Bars and/or Hooks fields, select the option (
) next to one and/or both these fields to block values.
Note: After modification in the multiselection mode, for several surface bar distributions the dialog will have only this tab. Using it you can modify a bar diameter, steel grade, cover, bar and hook bent diameter. If parameters set for each surface distribution differ, fields next to corresponding options are blank.
