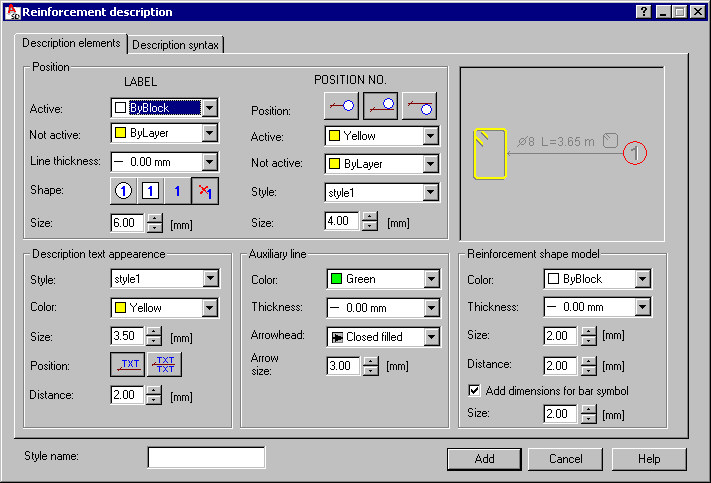

On the Description elements tab of the Reinforcement description (bar shape) dialog, you can define parameters such as colors, line thickness, font size, and label shape for a description.
The options included in the Position field refer to a label and the number that the label contains (see the drawing below).
Under Position, specify Label parameters:
- Colors for active and not active positions
- Line thickness
- Label shape
- Label size.
Specify Position Number parameters:
- Default position on the extension line
- Colors for active and not active positions
- Font style
- Font size.
The active position referred to here is specified on the Reinforcement description dialog (see the drawing below). If Active is selected for a given position, you choose a color from the Active list. If Active is not selected, you choose a color for this position from the Not active list.
The options under Description text appearance define a description placed between a position (label) and the described reinforcement:
- Style
- Color
- Size
- Position with respect to the auxiliary line (above only or above and below).
Under Auxiliary line, define parameters of a line that connects a position with reinforcement:
- Color
- Thickness
- Type of arrowheads
- Arrow size.
Under Reinforcement shape model, define parameters for a symbolic shape of the described reinforcement:
- Color and thickness of a line forming a symbol
- Size of a symbol
- Vertical distance to description text
- Dimensions for bar symbol - when you select this, the bar description includes a bar symbol, and you can specify the size of individual segments of a reinforcing bar.
