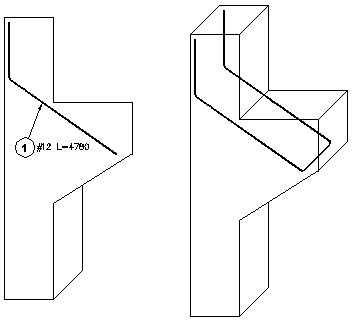

The following figure displays the reinforcement of a cantilever (to be provided under a crane girder): shown in the figure below, the user should follow the steps below, for example:
To define the reinforcement of a cantilever, specify the following:
- In the Special reinforcement dialog, select the reinforcement type - corbel reinforcement
- Define the value (in the Shape parameters field) of leg length equal to 30 cm
- Click
(Points) - Indicate point 1
- In the command line select the Side command - it modifies position of reinforcement with respect to the object (formwork)
- Indicate successive points: 2 and 3 (see the figure above)
- Indicate point 1 as a point of reinforcement opening; the defined reinforcement displays in the figure below.
