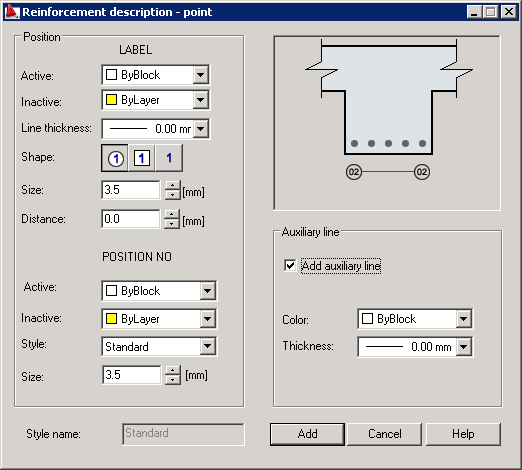

Use the Reinforcement description - point dialog to define parameters for description of bars in a section. The Reinforcement description - point dialog displays after you select the point reinforcement distribution and click New or Modify on the Description of reinforcement shape dialog.
The options included in the Position field refer to a label and the number that the label contains.
Under Position, specify Label parameters:
- Colors for active and not active positions
- Line thickness
- Label shape
- Label size
- Distance between labels for a description of bar distribution in several layers.
Specify the Position Number parameters:
- Color of active and not active positions
- Font style
- Font size.
Under Auxiliary line, select the Add auxiliary line option to draw a line between the selected labels. You can also define parameters of this line:
- Color
- Thickness.
