Using the Column base - with inclined ribs steel connection type, you can connect a column to the spread footing with additional inclined ribs.
Allowable elements:
Column
- Straight profiles - sections: I-sections and C-sections (types: 10-15; 20-25; 37; 38; 42)
- Plate girder - beam
- Plate girder - column
Location of elements:
No limitations

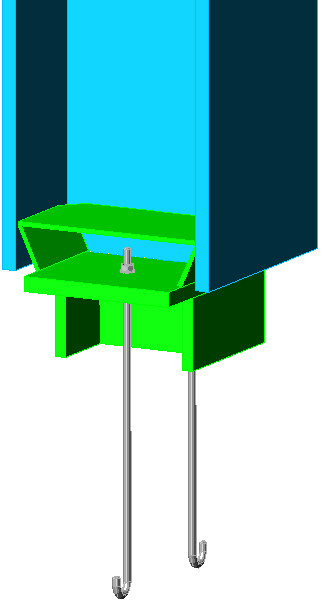

An example of the connection is displayed below.
