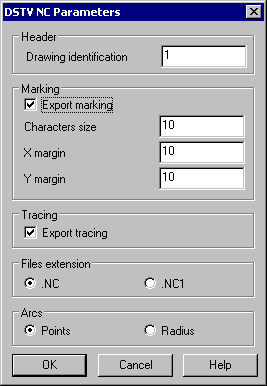

Use the DSTV NC Parameters dialog to define additional parameters of pointing and marking. The dialog opens after you click Parameters in the DSTV import/export dialog.
In descriptions of steel structure parts, used in the numeric control of machine tools, you can provide the following parameters:
- Header - a drawing will be identified by means of a specified text / number
- Marking - if Export marking is selected, the marking block will be included in the exported file. Specify parameters of marking a steel element
- Size of characters
- Position of the point where a description will be inserted (X margin and Y margin)
- Tracing - if this is selected, the pointing block will be included in the exported file.
- Files extension (NC or NC1)
- Method of arc definition:
- Points - by means of points positioned on the arc. The arc will be approximated between the beginning point P1 and the end point P2 by segments between points on the arc.
- Arc - by means of the arc radius. Between the beginning point P1 and the end point P2, the arc will be defined based on the radius value.
