Using the 2 beams over column (column section rotated by 90 degrees)steel connection type, you can create a connection of a column with 2 beams supported by this column.

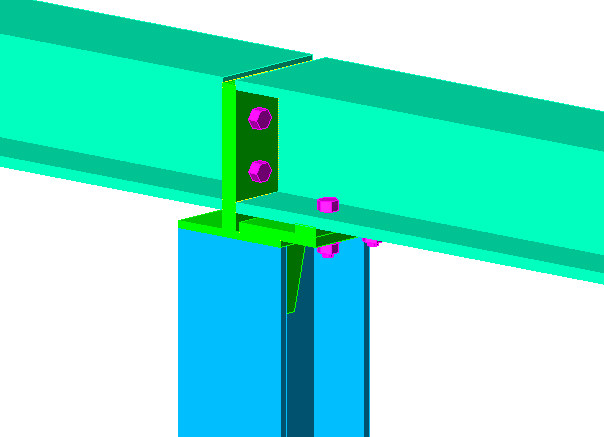

An example of the connection is displayed below.
