Using the clip angle: beam/beam rib steel connection type, you can connect a secondary beam to generated ribs of the main beam with either a bolted or a welded connection.

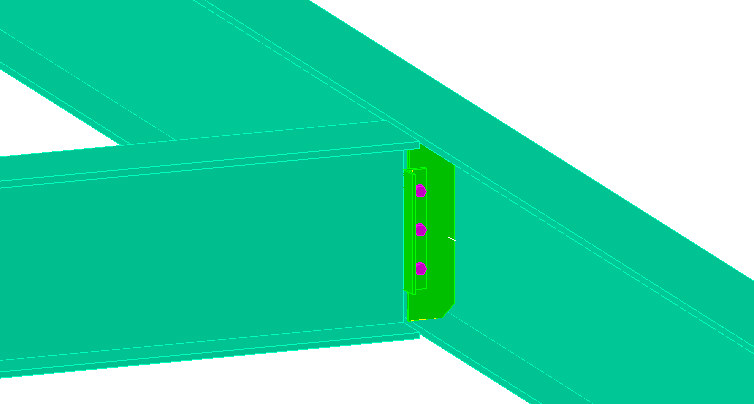

An example of the connection is displayed below.
