Viewing Reports on the Website

Results are available in the form of predefined analysis reports on the Autodesk® 360 Structural Analysis website. You can view them in the HTML or PDF format. You can also download and save them locally.

To view a report from the website

1. On the Projects tab, select a project.
2. On the project page, select a model.

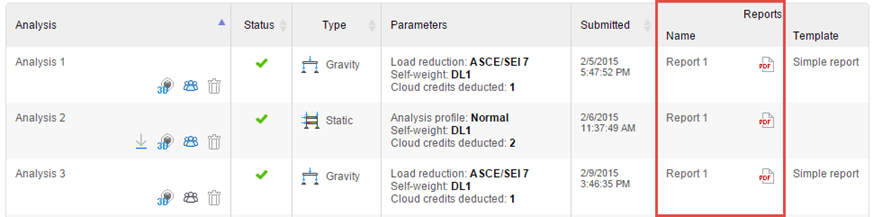

3. Locate the row that contains the analysis, and then click the report link (for an HTML format) or click the PDF icon.


To view a report from Revit

1. To access the list of all messages, do one of the following:
   • On the system taskbar, click (Structural Analysis for Revit) icon.
   • Click Analyze tab Structural Analysis Open Messages.

   The most recent message displays at the top.

2. Select the analysis, and then click the completed link.

   The report opens on the website in the HTML format.
