Downloading a model from the website

The Robot Structural Analysis engine performs analyses in the cloud. You can download an Robot Structural Analysis model with or without results from the Autodesk® 360 Structural Analysis website.

To download the structure model without results

  1. On the Projects tab, select a project.
  2. On the project page, select a model to download.

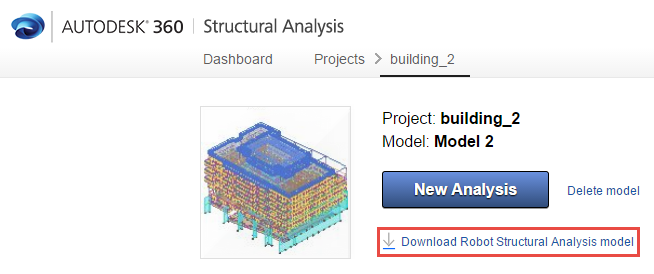

  3. Click the Download Robot Structural Analysis model link.
  4. Save the RTD file.

To download the structure model with results for a selected analysis

  1. On the Projects tab, select a project.
  2. On the project page, select a model.
  3. Locate the row that contains the selected analysis, and click (Download Robot Structural Analysis model) in the Analysis column.
  4. Save the RTD file.
