To set navigation options

1. Click .

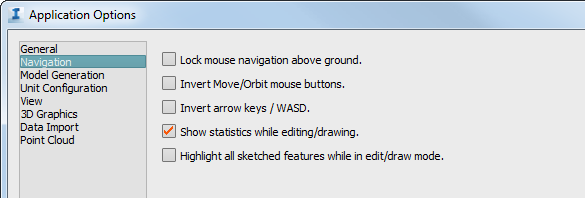

2. In the Application Options box, click Navigation. Select options to activate them.

   • Lock Mouse Navigation Above Ground prevents underground views from appearing.
   • Invert Move/Orbit Mouse Buttons reverses the functions of these buttons within InfraWorks 360.
   • Invert Arrow Keys/WASD reverses the behaviour of letter keys w, a, s d and arrow keys for navigation.

     Keys	Option checkbox cleared	Option checkbox selected
     an and d	move left and right	pan left and right
     w and s	tilt up and down	move forward and backward
     up and down arrow keys	move forward and backward	tilt up and down
     left and right arrow keys	pan left and right	move left and right

   • Toggle display of statistics such as total length or volume of an object while you edit and draw.
   • Highlight sketched features when you're in drawing mode.
