To define style rules

Style Rules use expressions to specify criteria that determine which styles will be applied to individual features in a feature class, based on the values of a data source property or model property you specify.

1. Click .
2. In the Style Rules Panel, click the tab for the desired feature class to style. The tabs are on the left side of the Style Rules panel. For example, to create a rule for buildings, click the Buildings tab.

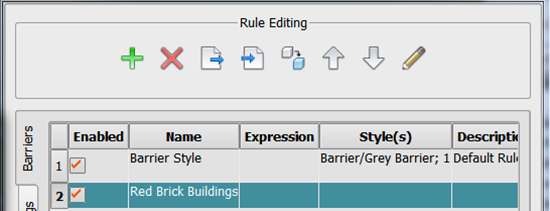

3. Click to create a new style rule. When prompted, enter a name for this style rule, for example, "Red Brick Buildings." After clicking OK, the new style name appears in the Rule Editing window.

4. Select the new style rule and click or double-click it to open the Rule Editor. Optionally, enter a description for the style.
5. Click under the Expression field. In the Create Filter Expression dialogue box, create an expression to filter the features you wish to style, then click OK.
   Note: If you don't create a filter expression for the Style Rule, the Style Rule you create will apply to the entire feature class.
6. In the Rule Editor, click to display the Select Style dialogue box. Select the style you want. Features that meet the criteria of the expression you created for this style rule will use the style you specify.
7. When you're finished with this rule, click OK.
   Note: If you're defining Rule Style rules, continue adding style rules until you have defined one for each Rule Style value.

Example Style Rule Expressions

Feature Class	Style Rule Expression	Result
Buildings	BUILDING_COMPLEX_ID = Downtown Hospital Complex OR BUILDING_COMPLEX_ID = Uptown Hospital Complex	Use the designated style for any building that is part of one of these hospital complexes.
Roads	LANES_BACKWARD > 2 AND LANES_FORWARD > 2	Use the designated style for roads that are two lanes or more in both directions.
Pipes	LOCATION:INSIDE:CIRCLE.ID1 Note: The syntax for this type of expression is inserted automatically when you draw the circle.	Use the designated style for pipes within the circle you draw on the model.

Advanced Tips

• You can assign multiple styles to one style rule. Use the Probability column in the Rules Editor to increase or decrease the frequency that each style in the style rule will be used.
• When you import data and then configure data, you can map one property from your original data source to the Rule Style model property. Define one style rule for each value of the RULE_STYLE property. You can override the Rule Styles property with the Manual Styles property.
• You can also create style rules that behave like feature class subsets. For example, if you enter the expression ROOF_HEIGHT > 24, all buildings whose ROOF_HEIGHT property is more than 24 will use this style.
• You can also override the style for an individual feature, or a set of features by dragging styles from the Style Palette to individual features, or even individual surfaces on a feature, such as one side of a building facade.
• For features that you style with 3D models, you can change the spacing and variance of the instanced models using the Properties palette.
