Map results from the Moldflow model to the structural model.
- Click .

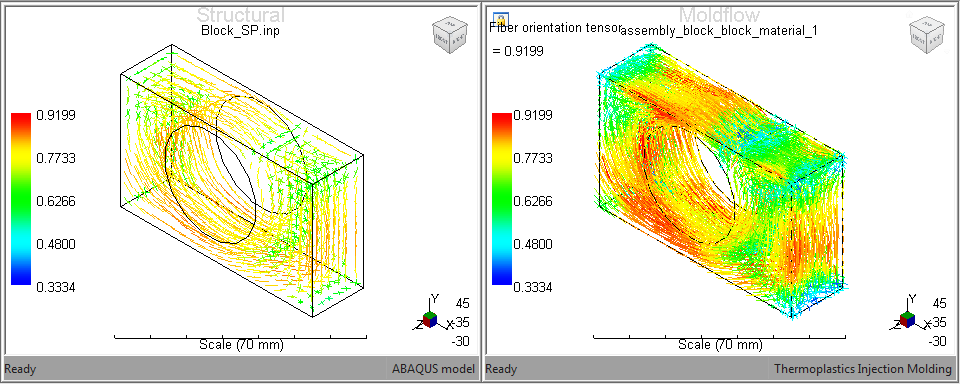

If you are using a fiber-filled material, the display windows will automatically switch from the Mesh view to the Fiber Orientation view. If you are using an unfilled material, the display will automatically switch to the Residual Strain view. A Fill + Pack + Warp Moldflow analysis must be performed to review the Residual Strain results.
Looking at the comparison of how the fiber orientations are shown on each model, you may decide that the mesh of the structural model is too coarse. If so, you may re-mesh the structural geometry using Abaqus or ANSYS and re-import the model with the refined mesh.

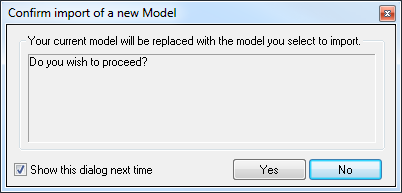

To re-import click . You will be presented with a warning dialog shown below.
After clicking Yes, you may proceed to select the refined model for import.
Note: After importing the new model, you will need to map results once again.
