Run the Analysis

Now we are ready to run the analysis.

1. Make sure the Tutorial_6_UD_Abaqus_xs.inp and Tutorial_6_UD_Abaqus_xs.hin files are saved in your working directory.

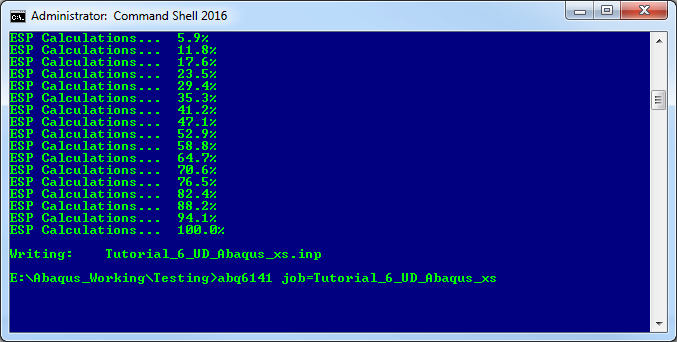

2. Return to the Command Shell and type the following to submit the analysis, in this case with Abaqus 6.14-1

   >>abq6141 job=Tutorial_6_UD_Abaqus_xs

Note: If you decided to create the model using the matrix element deletion criteria suggested in the previous step, you may also run those models at this time.
