Example: Create straight beams HEA 200 x 2500 mm long

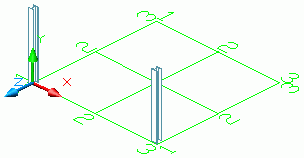

1. Click a suitable UCS. Refer to the above figure as an example.
2. On the ribbon, select .
   • Home Objects
   • Objects Beams
3. Select a starting point at 0,0,0.
4. Move the mouse pointer in the Y-direction (the setting ORTHO causes an exact orientation entry) and enter 2500.

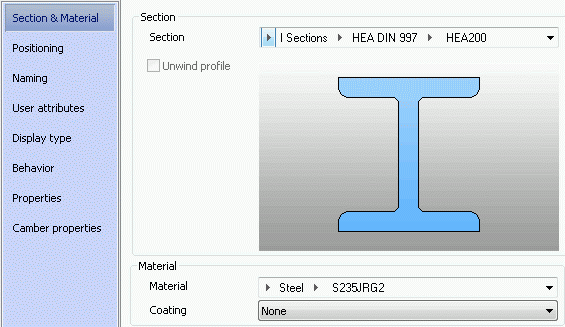

The Beam dialog appears. Select the section class (HEA), followed by the section (HEA 200).
