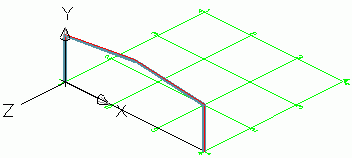

Example: Create a symmetrical portal frame

1. Set a suitable user coordinate system.
2. On the ribbon, click .
   • Home Extended Modeling
   • Extended Modeling Structural Elements
3. Define the first base point.
4. Define the second point.
5. Define the height of the frame with a right click.

The frame is created and the properties dialog appears. Modify the frame size to suit specific requirements.
