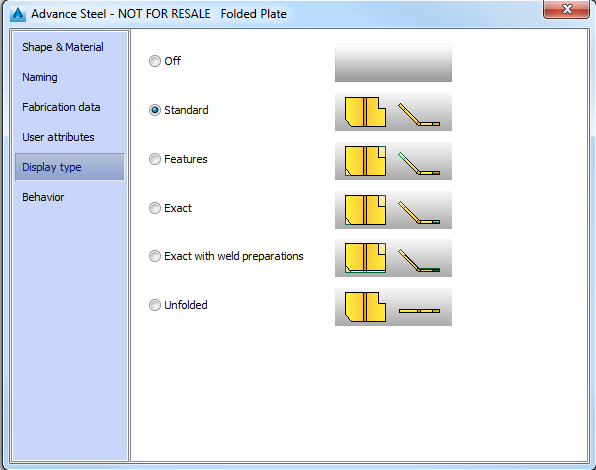

On this tab of the properties dialog box, you can select the folded plate display type.
Five display types are available:
|
Display type |
Folded plate |
Description |
|
Off |
Hides the plate |
|
|
Standard |
|
Plate contour without processing |
|
Features |
|
Plate contour with processing |
|
Exact |
|
Plate contour with processing and hole patterns |
|
Exact with weld preparations |
|
Same as Exact, with weld preparations |
|
Unfolded |
|
Displays the unfolded plates |
