Process a beam with another element

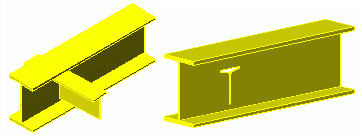

A straight or curved beam is processed through the geometry of another beam or plate. The object contour creates a cope at a straight or curved beam.

To access the command

Features tool palette:

Command line: _AstM4BeamElemContNotch

To process a beam with another element

1. Features tool palette: Click .
2. Select a beam to modify at a reference end.
3. Select an object to use for the cut.

• The contour processing is created.
