Bolts - Behavior tab

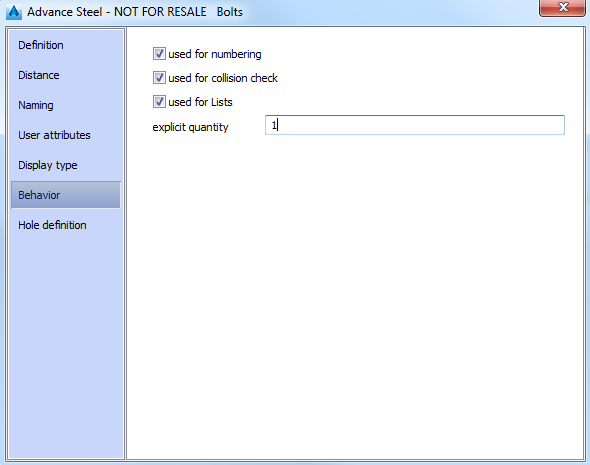

On this tab of the properties dialog box, you can select the bolt behavior at collision check and numbering.



Used for numbering

The bolt is used for numbering.

Used for collision check

The bolt is used for the collision check.

Used for lists

The bolt is used in the bill of material.

Explicit quantity

Defines the amount in the bill of material. Thereby it is possible to create one part in the model an multiple parts in the BOM.
