Edit detail

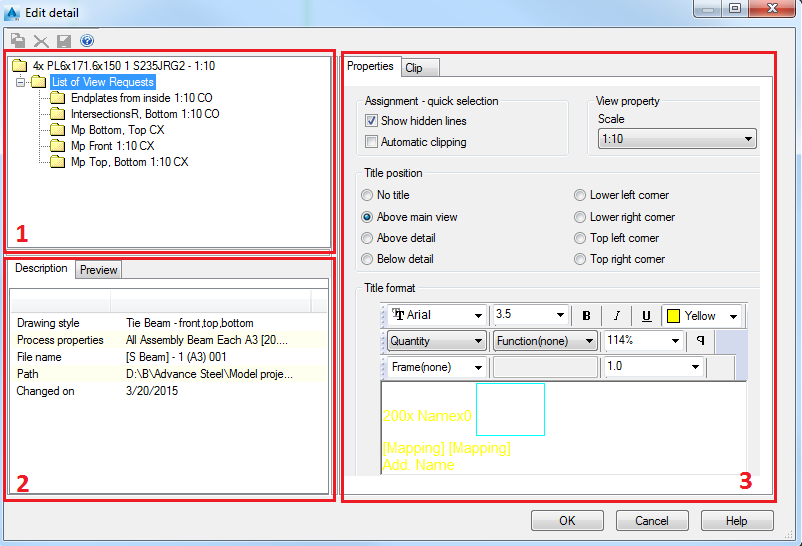

1. The list of used views of the detail

   In the left upper area the used detail views are displayed. Each view can be displayed in the Preview area.

   The properties of the selected view are displayed in the right side of the dialog window. By selecting List of View Requests, the title text and other properties are defined for the whole detail.

2. The detail description and the preview area

   There left bottom area displays two tabs:

   Description

   Lists information about the detail:

   • the name of the drawing style used for the detail creation
   • the file name
   • the path to the file location
   • the data of the last change

   Preview

   Displays a preview of the detail. The selected view is displayed with a green frame.

3. The properties of the selected detail

   Properties

   Clip

   View state
