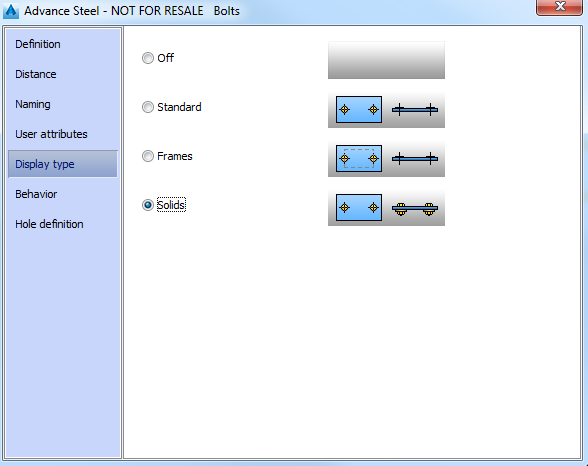

On this tab of the properties dialog box, you can select the bolt display type.
|
Display type |
Bolts |
Description |
|

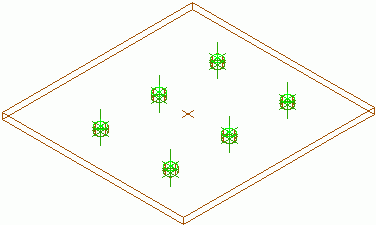

Off |
|
Only the holes are displayed |
|

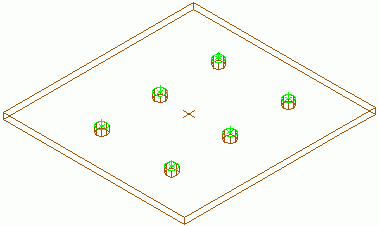

Standard |
|
Section edges and processing objects |
|
Frames |
|
The definition frame is displayed |
|

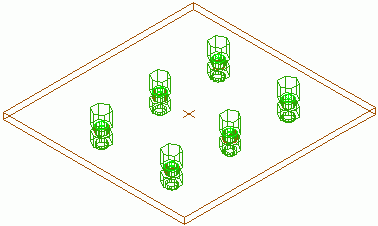

Solids |
|
The bolt and nut solids are represented |
