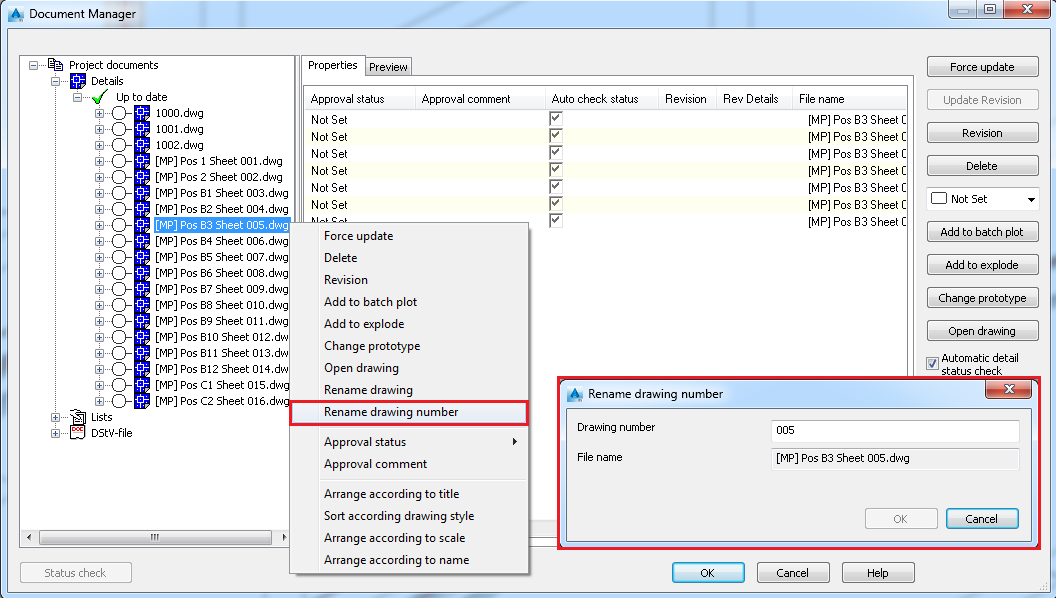

You can change the Drawing Number from the contextual menu.
- In Document Manager select a detail drawing and click the right button of the mouse.
- In the contextual menu select Rename drawing number.

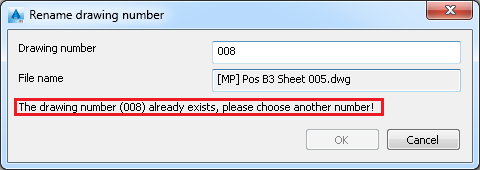

- A dialog will appear where you can assign the Drawing number.
\
If the numbering is done using the Drawing Number option:
- If you renumber a detail drawing then it will enter in the Update required category. After you run the Update labels command on the detail, the SP or MP number of the part will be updated correspondingly.
- If the file name contains the drawing number token and you don’t modify it using the Rename drawing command, then after the Update labels command the name of the drawing will also change to accommodate this modification.

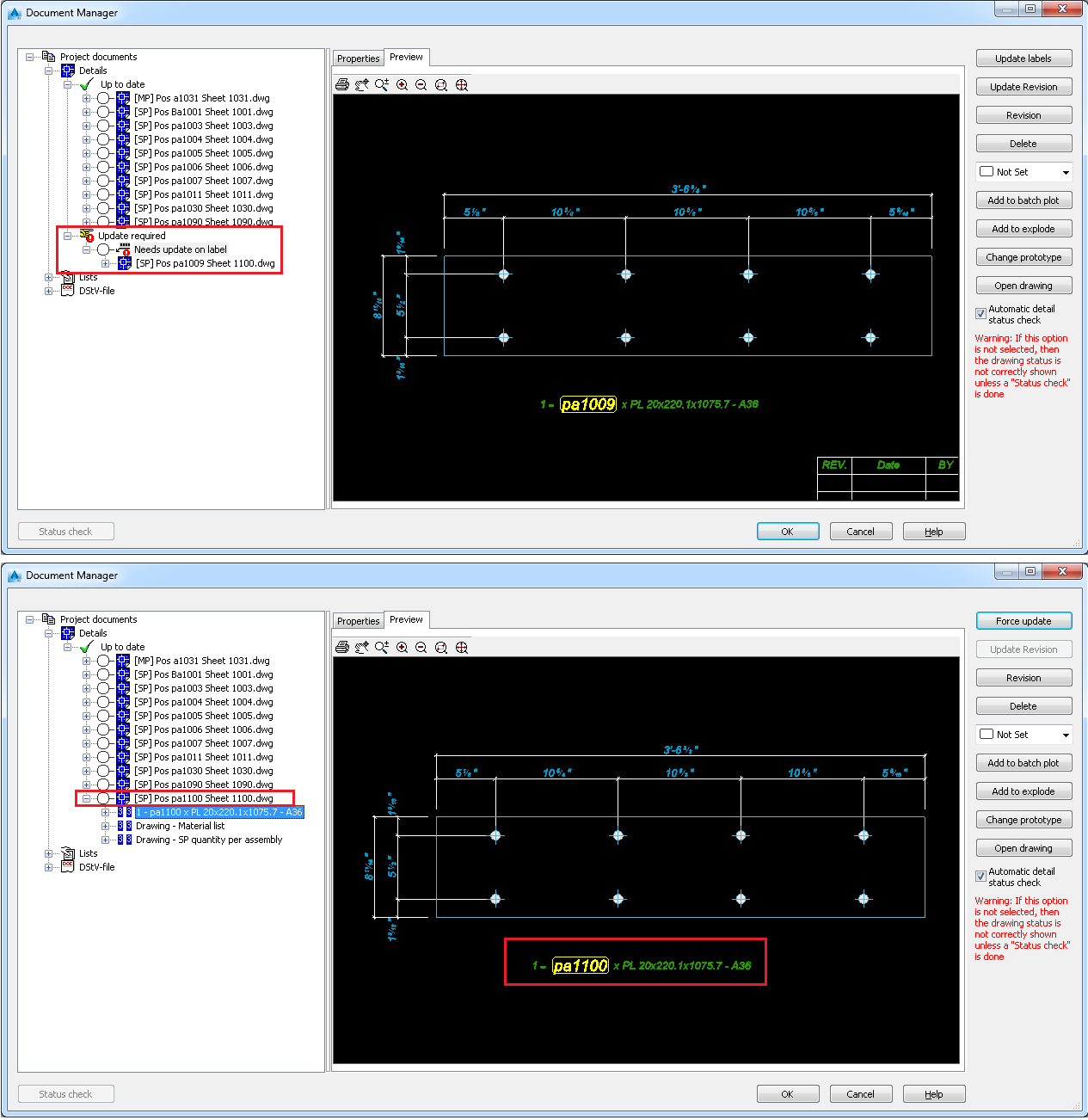

The renumbered drawing in the example was: [SP] Pos pa1009 Sheet 1009.dwg
It was renumbered from 1009 to 1100 and the detail went into the Update category as: [SP] Pos pa1009 Sheet 1100.dwg
After running the Update labels command, the detail name changed automatically to: [SP] Pos pa1100 Sheet 1100.dwg
-

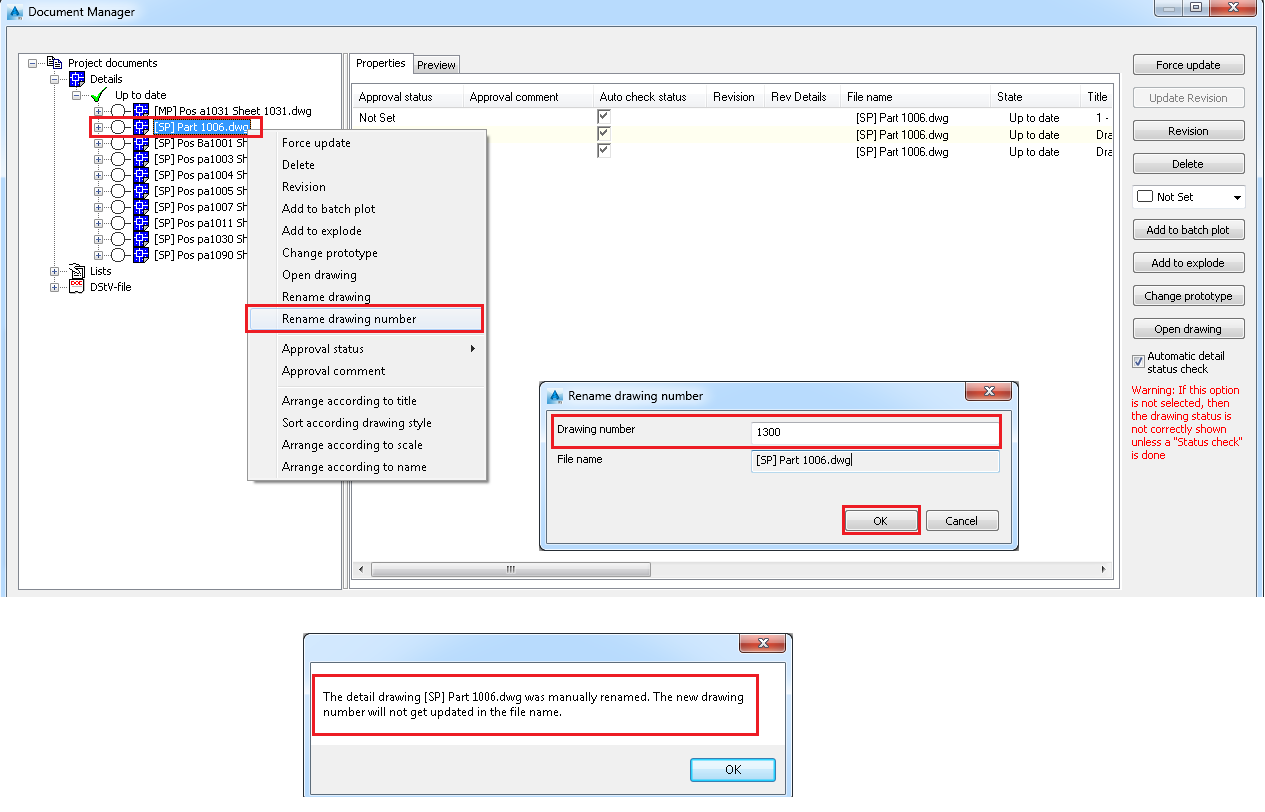

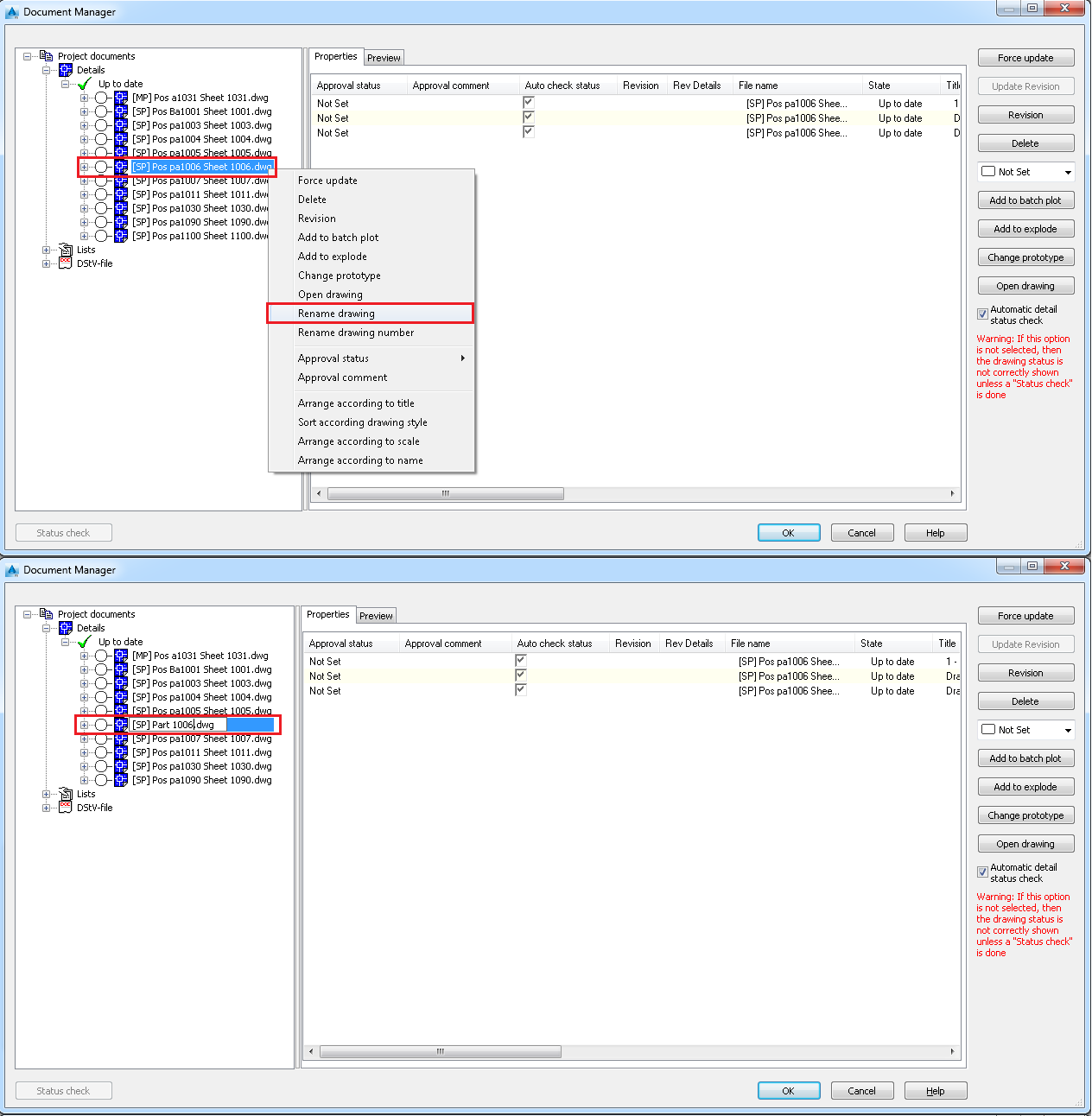

If you modify a file name using the Rename drawing command and then you renumber it using the Rename drawing number command, a warning message will appear stating that the "…new drawing number will not get updated in the file name". The detail drawing will enter the Update labels category.

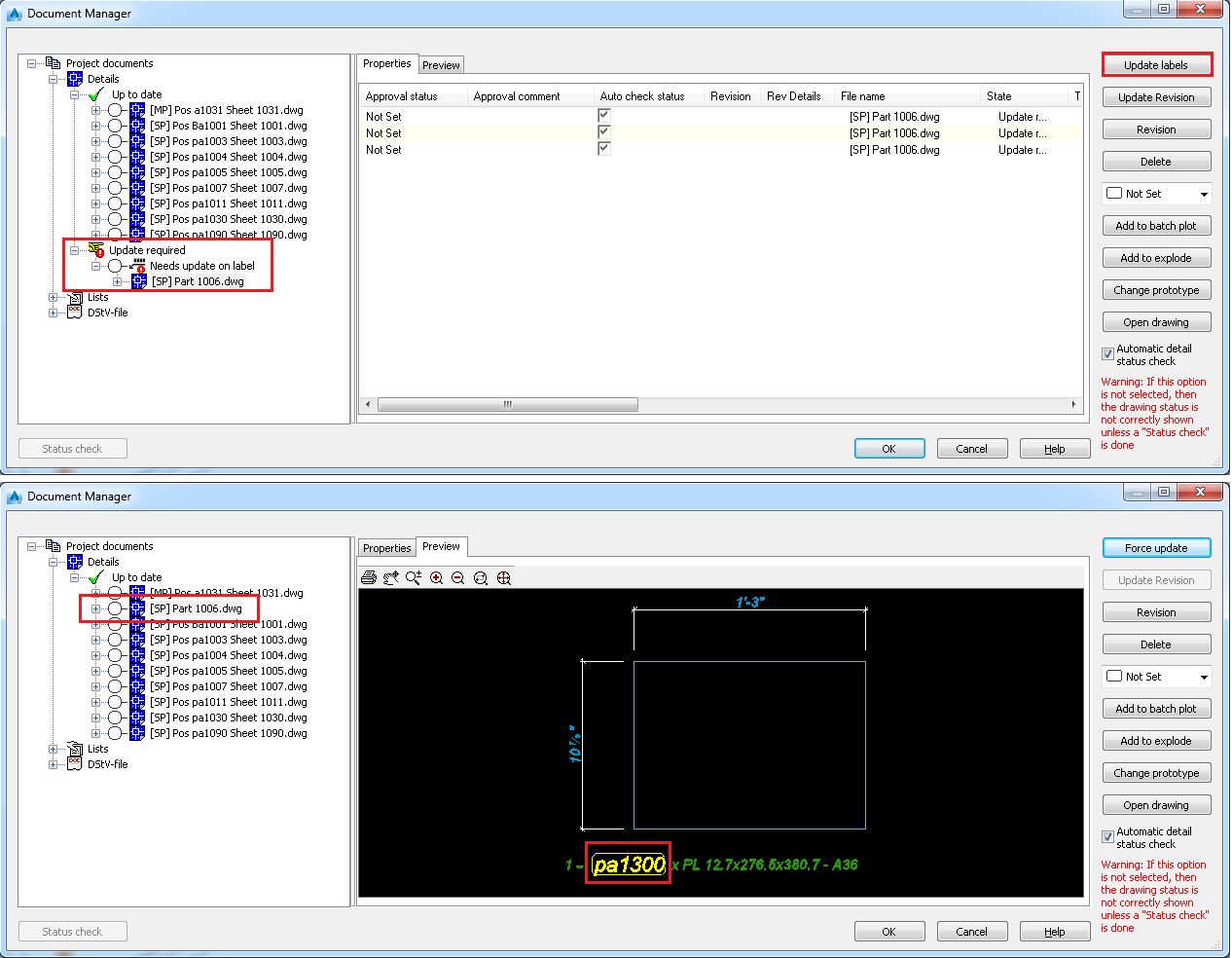

If you update, the SP or MP number of the part will be updated inside the drawing and the file name will not change. Please see the images below:
