Drawing Approval Status and Comments

Parent topic: General

Defines the state of a drawing that will be issued to production.

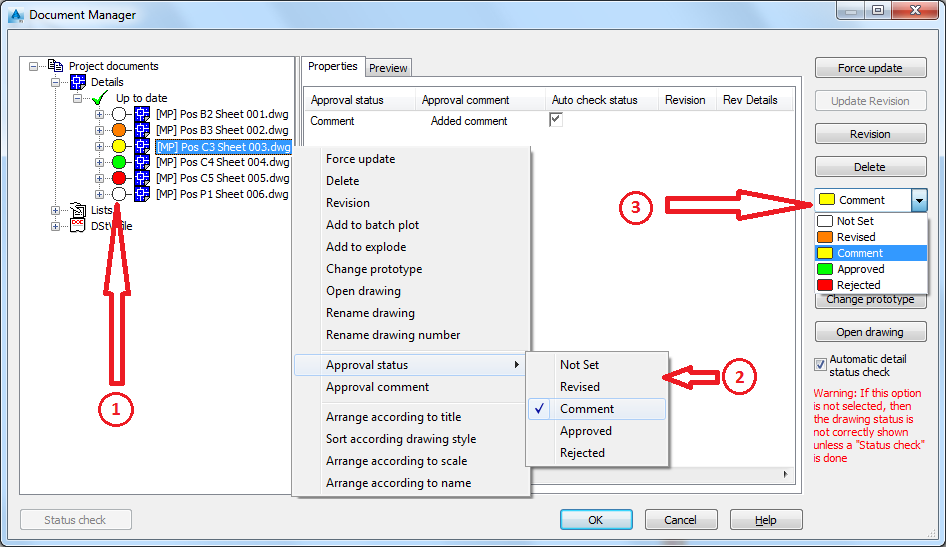

You can set the Drawing Approval Status in three ways:
  1. By clicking the bubble in front of the drawing name
  2. From the contextual menu
  3. From the combo-box

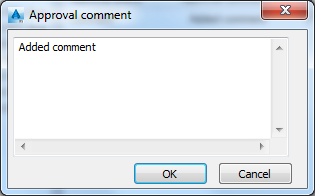

It's a text box where you can enter specifications for revision or for production

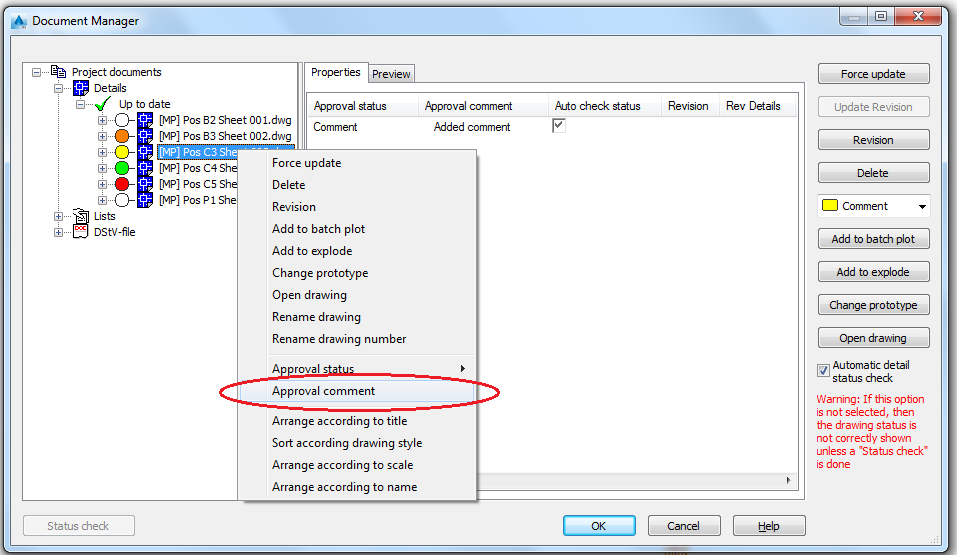

To add a Drawing Comment, choose Approval Comment in the contextual menu.





Drawings Approval Status andComments are displayed in the Properties tab of the dialog, allowing you to sort the drawing list according to approval status or approval comment.
