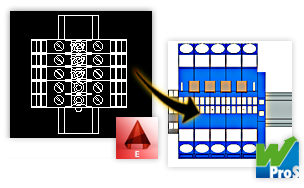

Extracts terminal strips and accessories to an XML file for import to Wago application.
Find
Command entry:
AEWAGOEXPORT
For example:
The Export Terminal Strip to Wago dialog box options are as follows:
|
Terminal list |
Displays the available terminal strips from the active project for export. Sort the list of terminal strips by selecting a column header. Select the terminal strips for export. |
|
Include Jumpers |
Select the check box to include jumpers when export. |
|
Save Files As |
Specifies a file name and the location for the export. By default the file is saved to the C:\Users\{username}\Documents folder. The file type is XML in a format compatible with WAGO ProServe 6.0. |
