Displays the properties of the selected object or set of objects.

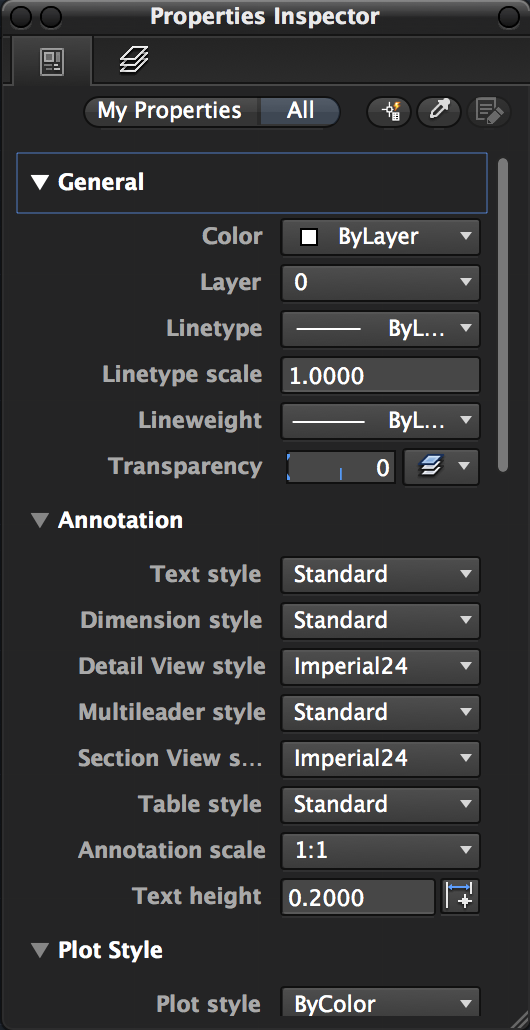

 Current Properties |

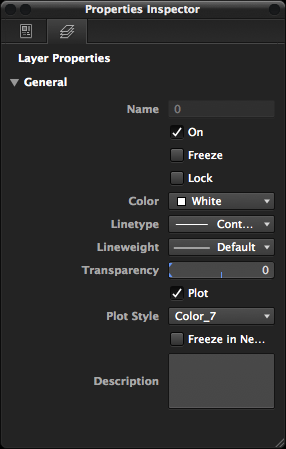

 Layer Properties |
Summary
When more than one object is selected, only those properties common to all selected objects are displayed. When no objects are selected, only the current settings of general properties are displayed.
You can specify a new value to modify any property that can be changed. Click the value and use one of the following methods:
- Enter a new value.
- Click the down arrow a the right and select a value from the list.
- Click the Pick Point button to use the pointing device to change a coordinate value.
- Click the […] button and change the property value in a dialog box.
- Select or clear a check box to toggle a property on or off.
- Drag a slider left or right.
When you view properties of AutoCAD objects, some properties may be unavailable.
List of Options
The following options are displayed.
- Current
-
Displays the properties for the current drawing or selected objects.
- Layer
-
Displays the properties for the layer selected in the Layer list of the Layers palette.
- Object Type
-
Displays the type of objects that are selected and filters which objects you are modifying.
- My Properties tab
-
Displays your personalized list of properties that you selected using the Customize My Properties button.
- All tab
-
Displays all the properties associated with the current drawing or the selected objects.
- Match Properties
-
Applies the properties of a selected object to other objects.
- Customize My Properties button
-
Displays a list of available properties that can added in the My Properties tab. The list of properties show is based on the following conditions:
- No objects selected in the current drawing. Drawing specific properties are displayed.
- Objects selected in the current drawing. Properties common to all selected objects are displayed.
- Layer selected from the Layer list in the Layers palette. Layer properties are displayed.
