Adds a jogged segment to a section object.
Access Methods
Toolbar: Mesh Modeling tab
Section panel (expanded) Section Plane Jog Shortcut menu: Select a section plane. Right-click in the drawing area and click Add Jog to Section.
Summary

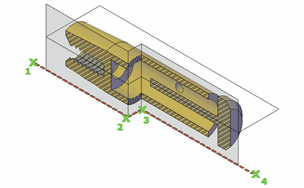

You can insert a jog, or angle, into a section object as you create it. The jog is created on the section line. The jogged segment is created at a 90-degree angle to the section line.
Note: The SECTIONPLANEJOG command was previously called JOGSECTION. Entering jogsection at the Command prompt runs SECTIONPLANE JOG.
List of Prompts
The following prompts are displayed.
- Select section object
-
Specifies which section line to modify.
- Point on the section line to add jog
-
Specifies the location of the jog.
