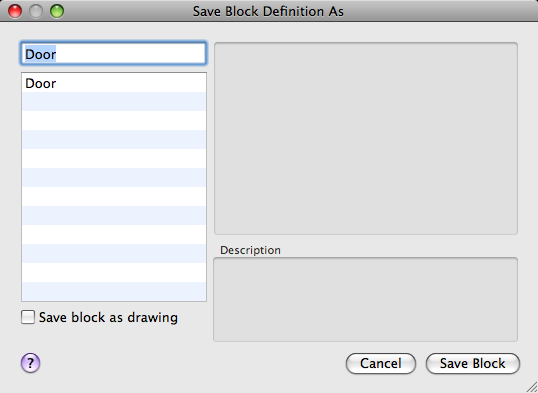

Saves a copy of the current block definition under a new name.
List of Options
The following options are displayed.
- Block Name
-
Specifies a new name under which to save a copy of the current block definition.
- Save Block as Drawing
-
Saves the geometry in the Block Editor as a drawing file. Selecting an existing drawing file on disk overwrites the file. By default, the block name specified is used as the drawing file name.
- Block List
-
Displays a list of block definitions that are saved in the current drawing.
- Preview
-
Displays a preview of the selected block definition.
- Description
-
Displays the description saved with the block definition.
