REVCLOUD (Command)

Creates a revision cloud using a polyline.

Access Methods

Button

 Toolbar: Drafting tool set Closed Shapes tool group (expanded) Revision Cloud

 Menu:  Draw Revision Cloud

Summary

Note: REVCLOUD stores the last used arc length in the system registry. This value is multiplied by DIMSCALE to provide consistency when the program is used with drawings that have different scale factors.

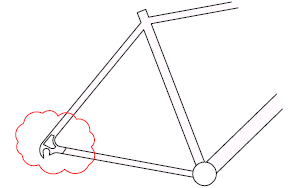

You can create a new revision cloud by dragging your cursor, or you can convert a closed object such as an ellipse or polyline into a revision cloud. Use revision clouds to highlight parts of a drawing that are being reviewed.

The resulting object is a polyline.

List of Prompts

The following prompts are displayed.

Minimum arc length: 0.5000 Maximum arc length: 0.5000

Specify start point or [Arc length/Object/Style] <Object>: Drag to draw the revision cloud, enter an option, or press Enter

Arc Length

Specifies the length of the arcs in a revision cloud.

The maximum arc length cannot be set to more than three times the minimum arc length.

Object

Specifies an object to be converted to a revision cloud.

Style

Specifies the style of the revision cloud.
