Layered Textures

'''
layeredTextures.py

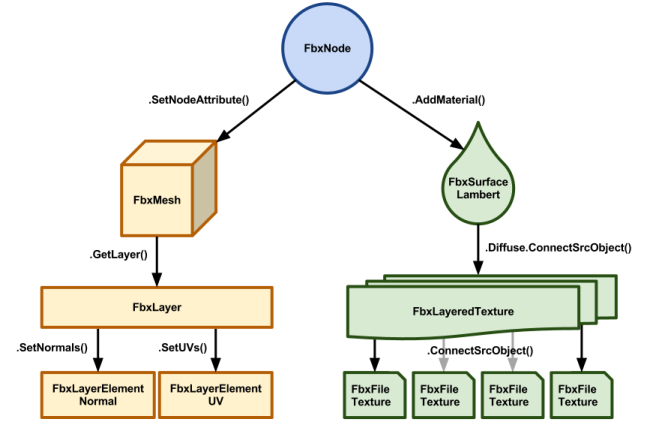

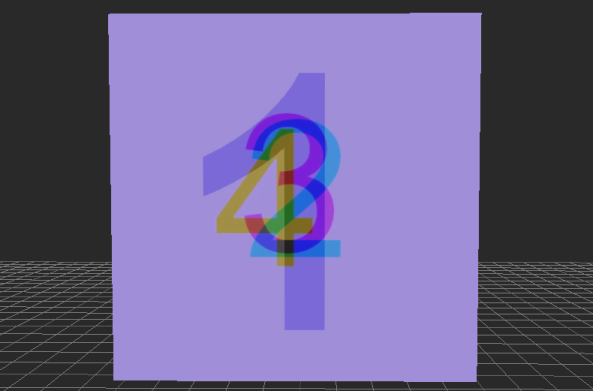

    > creates a plane in the scene whose four textures are layered
      one on top of another.

    > requires texture files: one.jpg, two.jpg, three.jpg, four.jpg
'''

import fbx
import FbxCommon

vertices = [fbx.FbxVector4( -5, -5,  0 ), # 0 - vertex index.
            fbx.FbxVector4(  5, -5,  0 ), # 1
            fbx.FbxVector4(  5,  5,  0 ), # 2
            fbx.FbxVector4( -5,  5,  0 )] # 3

normalPosZ = fbx.FbxVector4( 0, 0, 1 ) # positive-Z normal vector.

# Define the filename and alpha transparency of each texture.
textureFilenames = [ ( 'one.jpg',   0.2 ),
                     ( 'two.jpg',   0.5 ),
                     ( 'three.jpg', 0.4 ),
                     ( 'four.jpg',  1.0 ) ]

saveFilename = 'layeredTextures.fbx'

###############################################################
# Helper Function(s).                                         #
###############################################################
def createPlane(pScene):
    ''' Create a planar polygon as a child to the root node. '''

    rootNode = pScene.GetRootNode()

    #======================================================
    # Node definition and mesh object creation.
    #======================================================
    # Create the node.
    newNode = fbx.FbxNode.Create( pScene, 'planeNode' )
    rootNode.AddChild( newNode )

    # Create the mesh node attribute.
    newMesh = fbx.FbxMesh.Create( pScene, 'planeMesh' )
    newNode.SetNodeAttribute( newMesh )

    # Create a Lambertian material and assign it to the mesh's node.
    applyLambertMaterial( pScene, newNode )

    # Create and apply the layered texture.
    applyLayeredTexture( pScene, newNode )

    # Set the node's shading mode to view textures.
    newNode.SetShadingMode( fbx.FbxNode.eTextureShading )

    #======================================================
    # Control points.
    #======================================================
    # Define the vertices of the polygon.
    global vertices
    newMesh.InitControlPoints( 4 )
    newMesh.SetControlPointAt( vertices[0], 0 )
    newMesh.SetControlPointAt( vertices[1], 1 )
    newMesh.SetControlPointAt( vertices[2], 2 )
    newMesh.SetControlPointAt( vertices[3], 3 )

    #======================================================
    # Normals.
    #======================================================
    # For normals and UV coordinates, we will be using the
    # Layer indexed at 0. If it doesn't exist, we will create it.
    layer = newMesh.GetLayer( 0 )
    if( not layer ):
        newMesh.CreateLayer()
        layer = newMesh.GetLayer( 0 )

    # Create a normal layer element.
    normalLayerElement = fbx.FbxLayerElementNormal.Create( newMesh, 'normals' )

    # We want to have one normal for each vertex (or control point),    # so we set the mapping mode to eByControlPoint
    normalLayerElement.SetMappingMode( fbx.FbxLayerElement.eByControlPoint )

    # Set the normal values for every control point.
    normalLayerElement.SetReferenceMode( fbx.FbxLayerElement.eDirect )

    global normalPosZ # positive-Z normals.
    normalLayerElement.GetDirectArray().Add( normalPosZ )
    normalLayerElement.GetDirectArray().Add( normalPosZ )
    normalLayerElement.GetDirectArray().Add( normalPosZ )
    normalLayerElement.GetDirectArray().Add( normalPosZ )

    # Assign the normal layer element to the mesh's layer 0.
    layer.SetNormals( normalLayerElement )

    #======================================================
    # Diffuse Channel UV Coordinates.
    #======================================================
    # Given that we are only dealing with one polygon (a square plane),
    # we can simplify the code and map the uv coordinates directly to the
    # four polygon control points.
    uvDiffuseLayerElement = fbx.FbxLayerElementUV.Create( newMesh, 'diffuseUV' )
    uvDiffuseLayerElement.SetMappingMode( fbx.FbxLayerElement.eByPolygonVertex )
    uvDiffuseLayerElement.SetReferenceMode( fbx.FbxLayerElement.eDirect )

    # Populate the direct array.
    uv0 = fbx.FbxVector2( 0, 0 )
    uv1 = fbx.FbxVector2( 1, 0 )
    uv2 = fbx.FbxVector2( 1, 1 )
    uv3 = fbx.FbxVector2( 0, 1 )
    uvDiffuseLayerElement.GetDirectArray().Add( uv0 )
    uvDiffuseLayerElement.GetDirectArray().Add( uv1 )
    uvDiffuseLayerElement.GetDirectArray().Add( uv2 )
    uvDiffuseLayerElement.GetDirectArray().Add( uv3 )

    # Assign the uv layer element to the mesh's layer 0.
    layer.SetUVs( uvDiffuseLayerElement, fbx.FbxLayerElement.eTextureDiffuse )

    #======================================================
    # Polygon Definition.
    #======================================================
    # Create one planar polygon.
    #    > The 0 in FbxMesh.BeginPolygon() refers to the index of the material to be
    #      applied to the polygon. Since we only have one material applied to our FbxNode,
    #      we use index 0.
    newMesh.BeginPolygon( 0 )
    for i in range( 0, 4 ):
        newMesh.AddPolygon( i )
    newMesh.EndPolygon()

    return newNode

def applyLambertMaterial( pScene, pNode ):
    ''' Apply a Lambertian material to the node. '''

    black = fbx.FbxDouble3( 0, 0, 0 )
    white = fbx.FbxDouble3( 1, 1, 1 )

    material = fbx.FbxSurfaceLambert.Create( pScene, 'myMaterial' )
    material.ShadingModel.Set( 'Lambert' ) # could also use 'Phong' if we were using an instance of FbxSurfacePhong
    material.Emissive.Set( black )
    material.Ambient.Set( white )
    material.Diffuse.Set( white )
    material.TransparencyFactor.Set( 0 )

    pNode.AddMaterial( material )


def applyLayeredTexture( pScene, pNode ):
    ''' Apply a layered texture on the node using the given texture filenames. '''
    global textureFilenames

    textures = []

    # Create the individual texture objects to be layered afterwards.
    for i in range( 0, len( textureFilenames ) ):

        textureFilename = textureFilenames[i][0]
        textureAlpha = textureFilenames[i][1]

        newTexture = fbx.FbxFileTexture.Create( pScene, 'myFileTexture_' +  str( i ) )
        newTexture.SetFileName( textureFilename )

        newTexture.SetTextureUse( fbx.FbxTexture.eStandard )
        newTexture.SetMappingType( fbx.FbxTexture.eUV )
        newTexture.SetMaterialUse( fbx.FbxFileTexture.eModelMaterial )
        newTexture.SetSwapUV( False )
        newTexture.SetTranslation( 0.0, 0.0 )
        newTexture.SetScale( 1.0, 1.0 )
        newTexture.SetRotation( 0.0, 0.0 )
        newTexture.Alpha.Set( textureAlpha )

        textures.append( newTexture )

    # Create the layered texture object, and layer the textures within it.
    layeredTexture = fbx.FbxLayeredTexture.Create( pScene, 'myLayeredTexture' )

    for i in range( 0, len( textures ) ):
        texture = textures[ i ]
        layeredTexture.ConnectSrcObject( texture )
        layeredTexture.SetTextureBlendMode( i, fbx.FbxLayeredTexture.eAdditive )

    # Connect the layered texture to the node's material indexed at 0.
    # The layered texture is connected on the material's diffuse channel.
    material = pNode.GetMaterial( 0 )
    material.Diffuse.ConnectSrcObject( layeredTexture )


###############################################################
# Main.                                                       #
###############################################################
def main():
    ''' Main Program. '''
    fbxManager = fbx.FbxManager.Create()
    fbxScene = fbx.FbxScene.Create( fbxManager, '' )

    # Create the textured planar mesh.
    newNode = createPlane( fbxScene )

    # Save the file.
    global saveFilename
    FbxCommon.SaveScene( fbxManager, fbxScene, saveFilename, pEmbedMedia=True )

    # Clean up.
    fbxManager.Destroy()
    del fbxManager, fbxScene, newNode

if __name__ == '__main__':
    main()
