In CADmep, ESTmep and CAMduct, you can create linear nest reports using the Item Report Builder.
To create a linear nest report:
- Do one of the following:
- In ESTmep or CAMduct, open the desired job, and click File
Print Layout
Linear Nest Report.
- In CADmep, open the desired model, and at the command line, type LINEARREPORTS, and then press Enter.

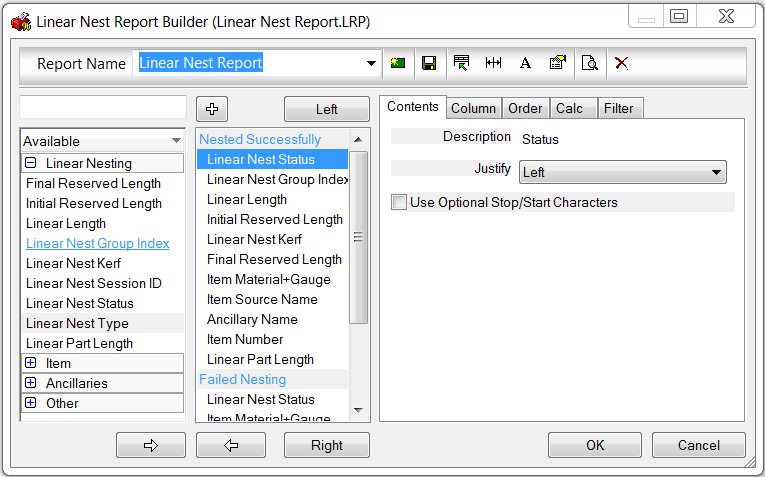

The Linear Nest Report Builder dialog displays.
- In ESTmep or CAMduct, open the desired job, and click File
- Select the desired objects to include in the report, and click OK.
A variety of item property information can be included on Linear Nest Reports, and also can be exported using the data export features. These are listed in the Available column on the right side of the Report Builder dialog. Expand the collections to see all of the properties available.
For more information, see Item Report Builder.
