About Disabling the Milling Feed Height

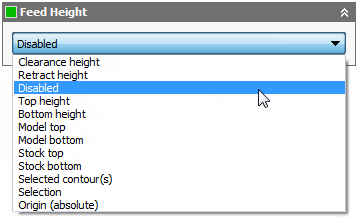

For 2D Contour and 2D Pocket, you have the option to disable the Feed Height which causes the tool to rapid down to the lead-in. Simply pick the Disabled option from the Feed Height drop-down list on the Heights tab.



Disabling the Feed Height



Left toolpath: 2D Contour with feed height set 5 mm from model top. Right toolpath: 2D Contour with feed height disabled.
