About Bore



Access:

Ribbon: CAM tab 2D Milling panel Bore

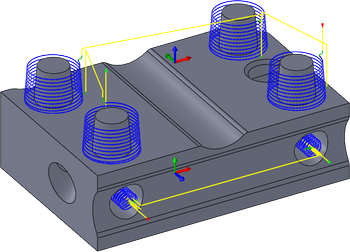

The Bore operation allows you to bore mill cylindrical pockets and islands by selecting the cylindrical geometry directly. The heights and depths are automatically derived from the selected geometry which allows you to machine varying geometry in a single operation.

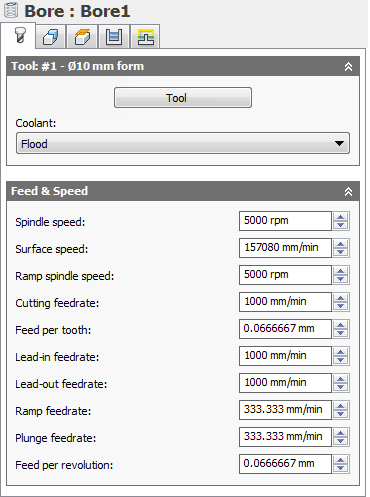

Tool tab settings



Coolant:

The type of coolant used with the tool.

Spindle speed:

The rotational speed of the spindle.

Surface speed:

The spindle speed expressed as the speed of the tool on the surface.

Ramp spindle speed:

The rotational speed of the spindle when performing ramp movements.

Cutting feedrate:

Feed used in cutting moves.

Feed per tooth:

The cutting feedrate expressed as the feed per tooth.

Lead-in feedrate:

Feed used when leading in to a cutting move.

Lead-out feedrate:

Feed used when leading out from a cutting move.

Ramp feedrate:

Feed used when doing helical ramps into stock.

Plunge feedrate:

Feed used when plunging into stock.

Feed per revolution:

The plunge feedrate expressed as the feed per revolution.

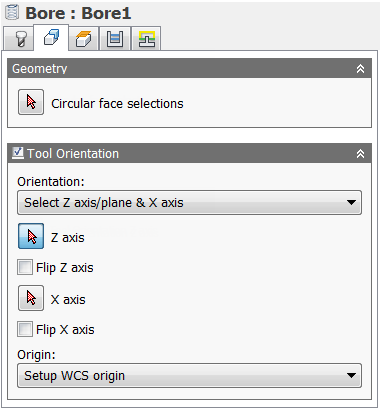

Geometry tab settings



Tool Orientation

Specifies how the tool orientation is determined using a combination of triad orientation and origin options.

The Orientation drop-down menu provides the following options to set the orientation of the X, Y, and Z triad axes:

The Origin drop-down menu offers the following options for locating the triad origin:

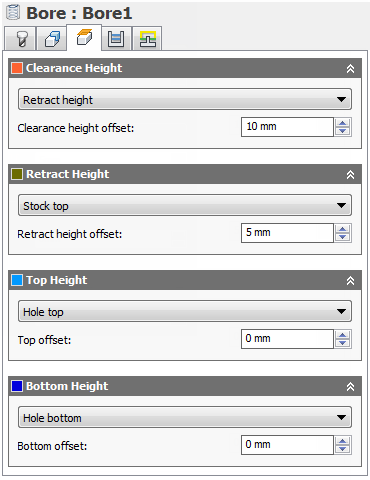

Heights tab settings



Clearance Height

The Clearance height is the first height the tool rapids to on its way to the start of the tool path.



Clearance Height

Clearance height offset:

The Clearance height offset is applied and is relative to the Clearance height selection in the above drop-down list.

Retract Height

Retract height sets the height that the tool moves up to before the next cutting pass. Retract height should be set above the Feed height and Top. Retract height is used together with the subsequent offset to establish the height.



Retract Height

Retract height offset:

Retract height offset is applied and is relative to the Retract height selection in the above drop-down list.

Top Height

Top height sets the height that describes the top of the cut. Top height should be set above the Bottom. Top height is used together with the subsequent offset to establish the height.



Top Height

Top offset:

Top offset is applied and is relative to the Top height selection in the above drop-down list.

Bottom Height

Bottom height determines the final machining height/depth and the lowest depth that the tool descends into the stock. Bottom height needs to be set below the Top. Bottom height is used together with the subsequent offset to establish the height.



Bottom Height

Bottom offset:

Bottom offset is applied and is relative to the Bottom height selection in the above drop-down list.

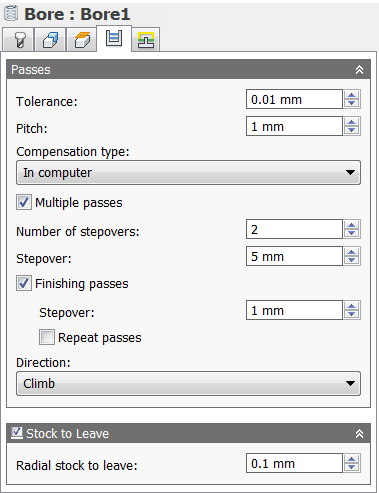

Passes tab settings



Tolerance:

The tolerance used when linearizing geometry such as splines and ellipses. The tolerance is taken as the maximum chord distance.



Loose Tolerance .100



Tight Tolerance .001

CNC machine contouring motion is controlled using line G1 and arc G2 G3 commands. To accommodate this, CAM approximates spline and surface toolpaths by linearizing them creating many short line segments to approximate the desired shape. How accurately the toolpath matches the desired shape depends largely on the number of lines used. More lines result in a toolpath that more closely approximates the nominal shape of the spline or surface.

Data Starving

It is tempting to always use very tight tolerances but there are trade-offs including longer toolpath calculation times, large G-code files, and very short line moves. The first two are not much of a problem because Inventor HSM calculates very quickly and most modern controls have at least 1MB of RAM. However, short line moves, coupled with high feedrates, may result in a phenomenon known as data starving.

Data starving occurs when the control becomes so overwhelmed with data that it cannot keep up. CNC controls can only process a finite number of lines of code (blocks) per second. That can be as few as 40 blocks/second on older machines and 1,000 blocks/second or more on a newer machine like the Haas Automation control. Short line moves and high feedrates can force the processing rate beyond what the control can handle. When that happens, the machine must pause after each move and wait for the next servo command from the control.

Pitch:

Specifies the thread pitch.

Compensation type:

Specifies the compensation type.

Note: Control compensation (including Wear and Inverse wear) is only done on finishing passes.

Multiple passes

Enable to enter a stepover value.

Number of stepovers:

The number of roughing steps.

Stepover:

Specifies the horizontal stepover between passes. By default, this value is 95% of the cutter diameter less the tool corner radius.



Horizontal stepover

Finishing passes

Enable to perform finishing passes using the side of the tool.

Note: This option is typically used when roughing and finishing is being done with the same tool.


With Finishing passes



Without Finishing passes

Stepover:

The maximum distance between finishing passes.

Repeat passes

Enable to perform the final finishing pass twice to remove stock left due to tool deflection.

Direction:

The Direction option lets you control if Inventor HSM should try to maintain either Climb or Conventional milling.

Remember: Depending on the geometry, it is not always possible to maintain climb or conventional milling throughout the entire toolpath.

Climb

Select Climb to machine all the passes in a single direction. When this method is used, Inventor HSM attempts to use climb milling relative to the selected boundaries.



Climb

Conventional

This reverses the direction of the toolpath compared to the Climb setting to generate a conventional milling toolpath.



Conventional

Stock to Leave



Positive

Positive Stock to Leave - The amount of stock left after an operation to be removed by subsequent roughing or finishing operations. For roughing operations, the default is to leave a small amount of material.



None

No Stock to Leave - Remove all excess material up to the selected geometry.



Negative

Negative Stock to Leave - Removes material beyond the part surface or boundary. This technique is often used in Electrode Machining to allow for a spark gap, or to meet tolerance requirements of a part.

Radial (wall) stock to leave

The Radial stock to leave parameter controls the amount of material to leave in the radial (perpendicular to the tool axis) direction, i.e. at the side of the tool.



Radial stock to leave



Radial and axial stock to leave

Specifying a positive radial stock to leave results in material being left on the vertical walls and steep areas of the part.

For surfaces that are not exactly vertical, Inventor HSM interpolates between the axial (floor) and radial stock to leave values, so the stock left in the radial direction on these surfaces might be different from the specified value, depending on surface slope and the axial stock to leave value.

Changing the radial stock to leave automatically sets the axial stock to leave to the same amount, unless you manually enter the axial stock to leave.

For finishing operations, the default value is 0 mm / 0 in, i.e. no material is left.

For roughing operations, the default is to leave a small amount of material that can then be removed later by one or more finishing operations.

Negative stock to leave

When using a negative stock to leave, the machining operation removes more material from your stock than your model shape. This can be used to machine electrodes with a spark gap, where the size of the spark gap is equal to the negative stock to leave.

Both the radial and axial stock to leave can be negative numbers. However, the negative radial stock to leave must be less than the tool radius.

When using a ball or radius cutter with a negative radial stock to leave that is greater than the corner radius, the negative axial stock to leave must be less than or equal to the corner radius.

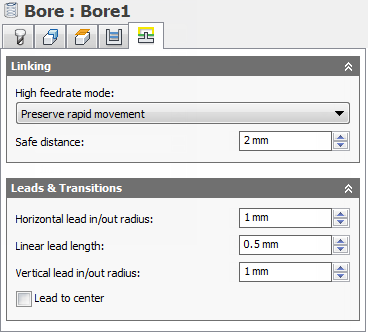

Linking tab settings



High feedrate mode:

Specifies when rapid movements should be output as true rapids (G0) and when they should be output as high feedrate movements (G1).

This parameter is usually set to avoid collisions at rapids on machines which perform "dog-leg" movements at rapid.

High feedrate:

The feedrate to use for rapids movements output as G1 instead of G0.

Safe distance:

Minimum distance between the tool and the part surfaces during retract moves. The distance is measured after stock to leave has been applied, so if a negative stock to leave is used, special care should be taken to ensure that safe distance is large enough to prevent any collisions.

Horizontal lead-in radius:

Specifies the radius for horizontal lead-in moves.



Horizontal lead-in radius

Horizontal lead-out radius:

Specifies the radius for horizontal lead-out moves.



Horizontal lead-out radius

Linear lead length:

Specifies the length of the linear leads.

Vertical lead-in radius:

The radius of the vertical arc smoothing the entry move as it goes from the entry move to the toolpath itself.



Vertical lead-in radius

Vertical lead-out radius:

Specifies the radius of the vertical lead-out.



Vertical lead-out radius

Lead to center

Specifies that the lead in/out movement should be into the center of the geometry.
