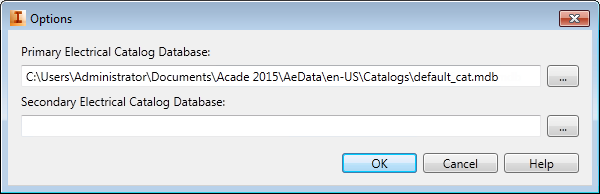

Options Dialog Box (Electrical Catalog Browser)

Ribbon: Assembly tab

Component panel

Place drop-down

Electrical Catalog Browser.

Click .

List of Options

The following options are displayed.

Primary Electrical Catalog Database: Defines the folder and name of the catalog database. By default it is the catalog database installed with AutoCAD Electrical.
Secondary Electrical Catalog Database: Defines the folder and name of the optional secondary catalog database. A common use for a secondary catalog database: the primary file can contain the catalog information that you commonly use, and the secondary file can contain the full list of catalog content available.
