Mesh the CAD model

In this step, you will create a Dual Domain mesh on the imported CAD model.

1. Click (Mesh tab > Mesh panel > Generate Mesh) to display the generate mesh panel.

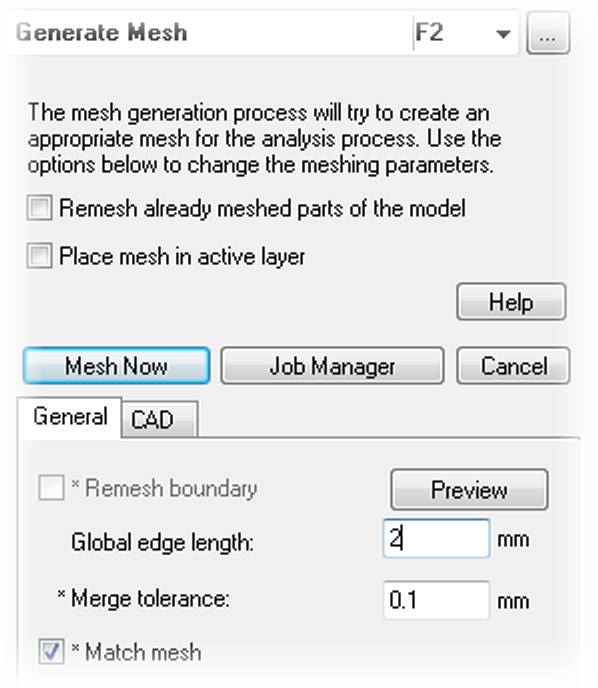

2. Enter 2 (mm) as the Global edge length , then click Mesh Now.

3. When the mesh is finished, click Logs at the bottom of the Synergy window to close the Logs panel.

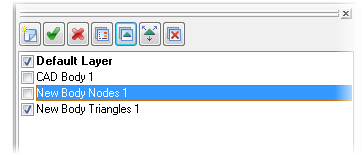

4. Deselect the New Body Nodes 1 layer in the Layers panel.
