Set the Analysis Sequence

In this task, you will set the analysis sequence to Cool(FEM) + Fill + Pack + Warp.

1. Click (Home tab > Molding Process Setup panel > Analysis Sequence).

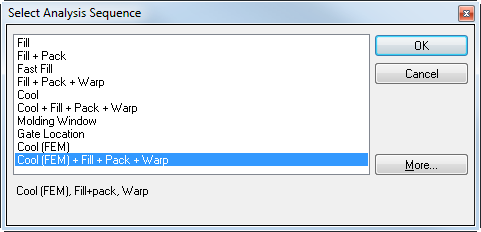

2. Select Cool(FEM) + Fill + Pack + Warp.

   Note: If you do not see an analysis sequence, click More to see all that are available for the molding process.

3. Click OK.
