View Fill Time Results

In this step, you review the fill time results.

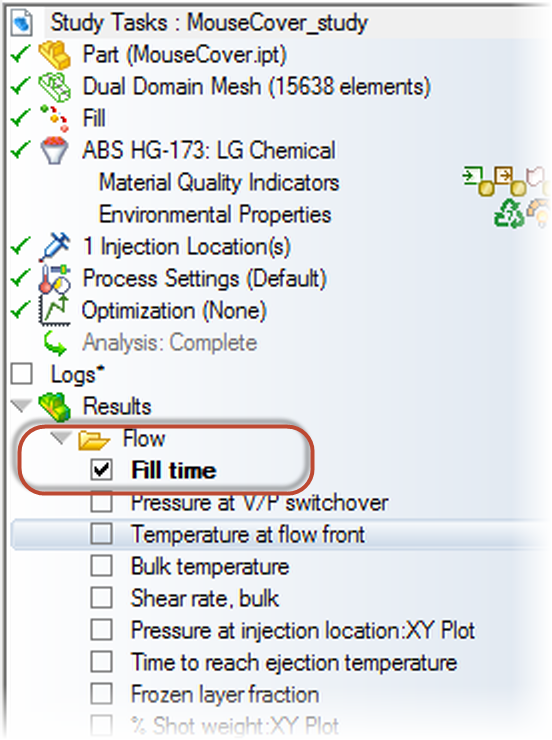

1. Click Fill Time in the Study Tasks list.



2. Rotate, Pan, and Zoom the model as necessary to inspect the fill time result.

3. Click (Results tab > Animation panel > Play) to animate the result. Use the other animation tools to see what they do.

4. Rotate the part similar to the plot.



5. Click (Results tab > Examine panel > Examine) to show the value at a specific location on the part. Use the CTRL key when clicking the part to select more than one location.
