Magnetic vector potential result

Obtaining this result

Mesh type:
  • Dual Domain
  • 3D
Analysis sequences that include:
  • Cool (FEM)

This result does not appear in the Study Tasks pane by default. Instead you can create it as a New Plot, after the analysis has run, by clicking New Plot (Results tab > Plots panel > New Plot > Plots). Magnetic vector potential is listed in the Available results.

Using this result

This result is an intermediate result that can be viewed to get a better understanding of the Joule Heat result. Check the direction and magnitude of the vectors and confirm that they are of an appropriate size and direction.

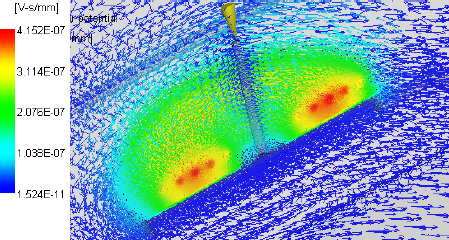

Figure 1: Magnetic vector potential in the mold
