Source electric potential result

Obtaining this result

Mesh type:

• Dual Domain
• 3D

Analysis sequences that include:

• Cool (FEM)

This result does not appear in the Study Tasks pane by default. Instead you can create it as a New Plot, after the analysis has run, by clicking (Results tab > Plots panel > New Plot > Plots). Source electric potential is listed in the Available results.

Using this result

This result is an intermediate result that can be viewed to get a better understanding of the Joule Heat result. Check that the magnitude of the electric potential is as expected based on your analysis setup.

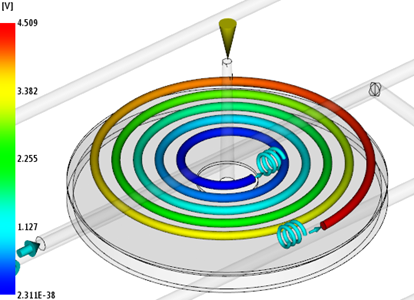

Figure 1: Source electric potential in the coil
