Post-Process the Results

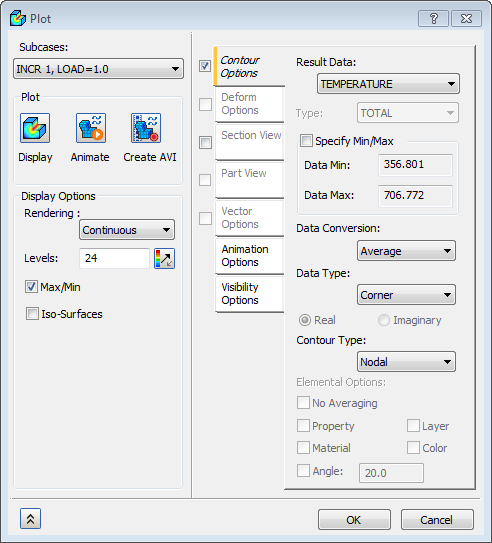

  1. Double-click on Results. The Plot dialog opens up.

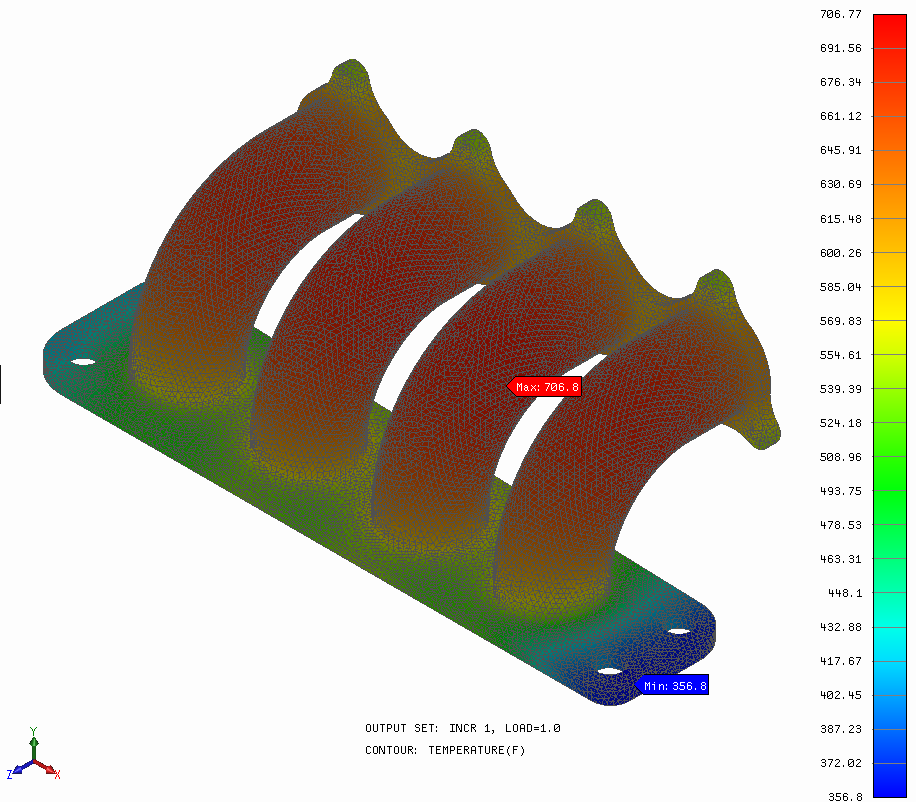

  2. Click Display. The results should look as shown below.
