Set Up the Analysis

  1. In the tree view, right-click on Analysis 1 and choose Edit.
  2. Type Dome Lid Buckling for Name, and type Linear Buckling for Title. Select Linear Buckling from the Type drop-down menu.
  3. Enter 3 for the Number of Modes to be extracted. This will instruct Autodesk Nastran to calculate the first 3 eigenvalues.

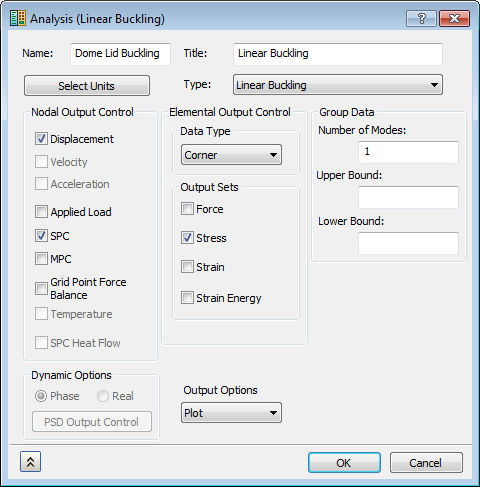

  4. The dialog should look as shown below.

  5. Click OK to finish setting up the analysis and return to the tree view.
  6. Save the model at this point.
