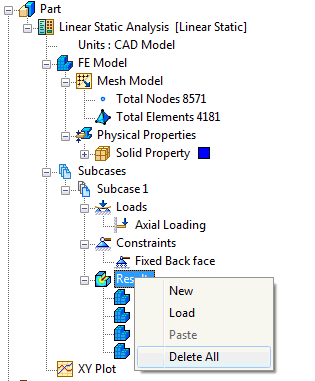

- Delete the results from the previous run by right-clicking on
Results and selecting
Delete All.
- Right-click on
Linear Static Analysis, choose
New Subcase and click
OK.
- Right-click on
Loads and select
New.

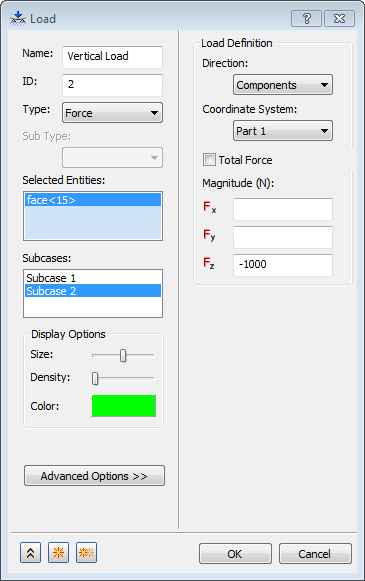

- Change the
Name to
Vertical Load. Select the same hole that was used for the previous load and make sure that
Subcase 2 is selected in the
Subcases list. Under
Load Definition type
-1000 in the
FZ field and click
OK.
- The new load and the previous fixed constraint will be used in the second subcase.
- Right-click on
Subcase 2 and choose
Edit.

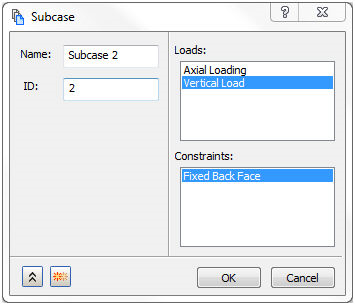

- In the
Subcase form select
Vertical Load in
Loads and
Fixed Back Face in
Constraints, click
OK.

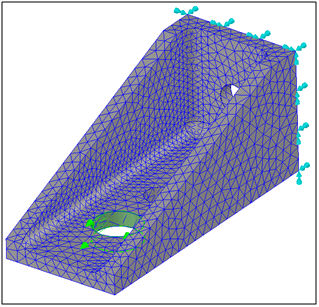

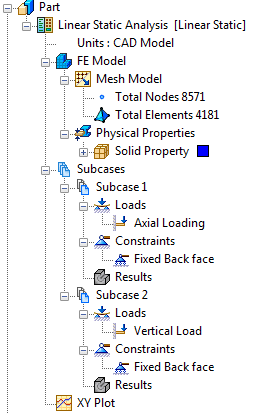

- The new subcase is added to the
FE Model as shown below.
